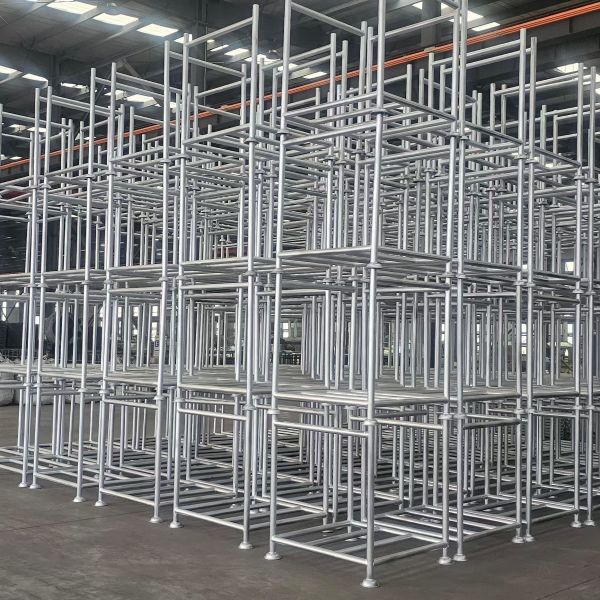

Customized Cuplock System Scaffolding Modular Event Stage Scaffold 2.5m Standard

Brand Name : WKS

Certification : ROHS

Place of Origin : Hebei,China

MOQ : 200/Piece

Price : US $8.90 - 12.00/ Piece

Payment Terms : T/T

Supply Ability : 1000 piece in 10 days

Delivery Time : 10-30 workday

Packaging Details : Bundled / Tied in bundles/Optimization of container loading

Product name : Cuplock System Scaffolding

diameter : 48mm

thickness : 3.0/3.25mm

Quality guarantee : 2 year

technology : CO2 arc welded

peculiarity : Easy Assembling

colour : Customized Colour

Surface treatment : Painted/Galvanized

Customize or not : Available in custom or standard sizes

dimension : 1200,1800,2400mm or as your request

Contact Now

Cuplock Scaffolding 2.5m Standard for Event Stage and Temporary Grandstand

Product Overview

Cuplock Scaffolding is a versatile modular system featuring a unique cup-and-blade locking mechanism, designed for high-load applications in commercial construction, bridge falsework, and industrial maintenance. It provides exceptional stability and rapid assembly for complex scaffolding structures.

Features & Functions

Rapid Cup-Lock Mechanism: Horizontal ledgers are secured by rotating the top cup to lock four connections simultaneously, enabling tool-free assembly 40% faster than traditional scaffolding systems.
High Structural Integrity: The 500mm uniform node spacing creates a rigid grid structure capable of supporting concentrated loads up to 4.5 kN/m², ideal for concrete formwork and heavy equipment.
Multi-Directional Flexibility: Components connect at 90-degree intervals, allowing versatile configurations for straight walls, circular structures, and complex access towers without special adapters.
All-Weather Durability: Hot-dip galvanized finish provides superior corrosion resistance for long-term outdoor use in harsh environments, with minimal maintenance requirements.

Key Specifications

Material: Q235B/Q345B Structural Steel
Standard Tube: Ø48.3mm x 2.75mm/3.0mm
Node Spacing: 500mm standard, 750mm available
Max Working Height: 60m+ with proper bracing
Load Capacity: 4.0-4.5 kN/m² (Heavy Duty)
Surface Treatment: Hot-Dip Galvanized 85μm

Competitive Advantages

Optimal Labor Efficiency: One worker can assemble multiple connections simultaneously, reducing crew size requirements by 30% compared to frame scaffolding systems.
Enhanced Safety Performance: The positive mechanical lock eliminates accidental disassembly, while the rigid structure meets EN12811 safety standards for high-level work.
Long-Term Economic Value: 500+ reuse cycles with proper maintenance provide the lowest cost-per-use ratio in the heavy-duty scaffolding category, with full component recyclability.

Customized Cuplock System Scaffolding Modular Event Stage Scaffold 2.5m Standard

Product Parameters - Standards (Uprights)

Item No.	Length	Weight
BSCS 300	3m/9'10"	17.5kg/38.25 Ibs
BSCS 250	2.5 m/8'2"	14.57 kg/32.12 Ibs
BSCS 200	2m/6'2"	11.82 kg/26.07 Ibs
BSCS 150	1.5 m/4'11"	9.05 kg/19.95 Ibs
BSCS 100	1 m/3'3"	6.3 kg/13.91 Ibs
BSCS O50	0.5m/1'8"	3.5 kg /7.77 Ibs

Product Parameters - Ledgers (Horizontal Braces)

Item No.	Length	Weight
BSCL 250	2.5 m/8'2"	9.35 kg/20.61 Ib
BSCL 180	1.8 m/6'	6.85 kg / 15.1 Ibs
BSCL 150	1.5 m/4'11"	5.75 kg/9.46 Ibs
BSCL 120	1.2m/4	4.29 kg/13.91 Ibs
BSCL 090	0.9m/3'	3.55 kg /7.83 Ibs
BSCL 060	0.6m/2'	2.47 kg / 5.45 Ibs

Our Services

Customized Production Services: Professional engineering team provides detailed product application solutions based on your project drawings.
Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs.
Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects.

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a subsidiary foreign trade company of a group company, responsible for operating export business of formwork and scaffolding products. Our group has two major production bases with over 20 years of production experience.

How can I get a quotation?
For simple projects with your own engineer, provide a bill of materials. For complex projects like apartments and residences, our consultants will develop an application plan based on your engineering drawings.

How long does it usually take to complete the plan and quotation?
Generally 5-8 days to complete specific plans and detailed quotations.

Can you provide free samples?
Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time after the contract is signed?
Usually 30-60 days depending on project complexity. More accurate delivery times are provided during planning.

Is the plastic template prone to deformation?
In long-term high temperature environments, slight deformation may occur. We recommend aluminum alloy formwork or steel frame wood formwork for high temperature areas.

What are the defects of the plastic template system?
Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.

What is the payment method you require?
Payments ≤1,000USD: 100% in advance. Payments ≥10,000USD: 30% T/T in advance, balance before shipment. L/C also accepted.
