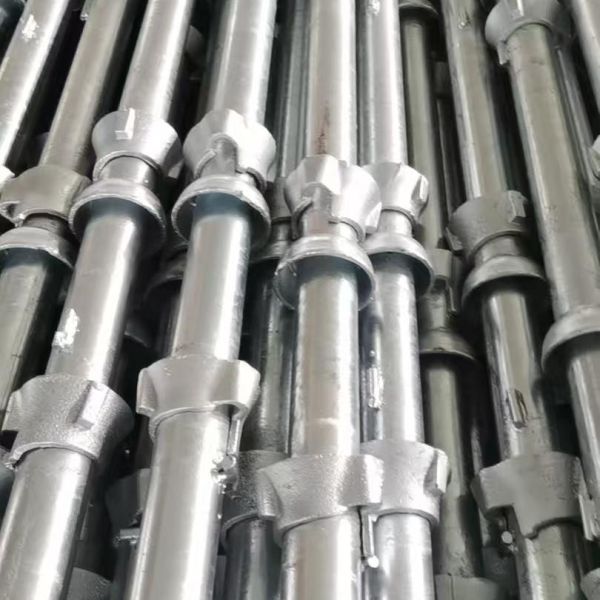

Corrosion Protection Cup Lock Scaffold High Load Capacity Access Tower Scaffolding Customized

Brand Name : WKS

Certification : ROHS

Place of Origin : Hebei,China

MOQ : 200/Piece

Price : US $8.90 - 12.00/ Piece

Payment Terms : T/T

Supply Ability : 1000 piece in 10 days

Delivery Time : 10-30 workday

Packaging Details : Bundled / Tied in bundles/Optimization of container loading

Product name : Cup Lock Scaffold

thickness : 3.0/3.25mm

diameter : 48mm

Quality guarantee : 2 year

dimension : 1200,1800,2400mm or as your request

peculiarity : Easy Assembling

Surface treatment : Painted/Galvanized

colour : Customized Colour

technology : CO2 arc welded

Customize or not : Available in custom or standard sizes

Contact Now

Cuplock Scaffolding with 1.8m Ledger and 2.0m Standard for Access Tower

Product Overview

Cuplock Scaffolding is a versatile, multi-purpose modular system engineered for high-load applications in building construction, industrial maintenance, and concrete formwork support. It features a unique cup-lock joint system that provides rapid assembly and exceptional stability for demanding projects requiring reliable temporary access and shoring.

Features & Functions

Tool-Free Rapid Assembly: The system's patented cup-lock design allows horizontal members to be secured instantly by rotating the locking cup, eliminating the need for loose bolts or wedges and significantly accelerating construction time.
High Load-Bearing Capacity: Engineered to support heavy construction loads, it is ideal for concrete formwork, masonry work, and material handling platforms where structural integrity is critical.
Uniform Node Spacing: Standard 500mm or 1000mm vertical intervals provide consistent strength and stability, allowing predictable load calculations and safe working platforms at all heights.
All-Direction Connectivity: The cup-lock joints accept horizontal members from all directions, enabling flexible configurations for complex structures, curved walls, and irregular building shapes.

Key Specifications

Material: High-Grade Structural Steel
Standard Size: 48.3mm diameter uprights and ledgers
Standard Lengths: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m
Working Load: Up to 4.5 kN per square meter
Surface Treatment: Hot-Dip Galvanized for corrosion resistance
Locking Mechanism: Forged steel cups and blades

Competitive Advantages

Enhanced Safety: The positive mechanical lock prevents accidental disassembly, while the rigid node design minimizes lateral movement, creating a safer work environment.
Reduced Labor Costs: Faster assembly and disassembly compared to traditional tube-and-coupler systems cuts labor requirements by up to 40% for similar applications.
Superior Durability: Hot-dip galvanized finish provides long-term corrosion protection, ensuring 300+ reuse cycles with proper maintenance and handling.

Corrosion Protection Cup Lock Scaffold High Load Capacity Access Tower Scaffolding Customized

Product Parameters - Standards (Uprights)

Item No.	Length	Weight
BSCS 300	3m/9'10"	17.5kg/38.25 Ibs
BSCS 250	2.5 m/8'2"	14.57 kg/32.12 Ibs
BSCS 200	2m/6'2"	11.82 kg/26.07 Ibs
BSCS 150	1.5 m/4'11"	9.05 kg/19.95 Ibs
BSCS 100	1 m/3'3"	6.3 kg/13.91 Ibs
BSCS O50	0.5m/1'8"	3.5 kg /7.77 Ibs

Product Parameters - Ledgers (Horizontal Braces)

Item No.	Length	Weight
BSCL 250	2.5 m/8'2"	9.35 kg/20.61 Ib
BSCL 180	1.8 m/6'	6.85 kg / 15.1 Ibs
BSCL 150	1.5 m/4'11"	5.75 kg/9.46 Ibs
BSCL 120	1.2m/4	4.29 kg/13.91 Ibs
BSCL 090	0.9m/3'	3.55 kg /7.83 Ibs
BSCL 060	0.6m/2'	2.47 kg / 5.45 Ibs

Our Services

Customized Production Services: Professional engineering team provides detailed product application solutions based on your project drawings.
Timely Response Service: Professional engineers available before, during, and after sales to promptly solve and meet your needs.
Worry-Free After-Sales Service: One-on-one service teams to help complete implementation and landing of engineering projects.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a subsidiary foreign trade company of a group company, responsible for operating export business of formwork and scaffolding products. Our group has two major production bases with over 20 years of production experience.

How can I get a quotation?

For simple projects with your own engineer, provide a bill of materials. For complex projects like apartments and residences, our consultants will develop an application plan based on your engineering drawings.

How long does it usually take to complete the plan and quotation?

Generally 5-8 days to complete specific plans and detailed quotations.

Can you provide free samples?

Yes, we can provide samples. You will need to pay for the shipping cost.

How long is the estimated delivery time after the contract is signed?

Usually 30-60 days depending on project complexity. More accurate delivery times are provided during planning.

Is the plastic template prone to deformation?

In long-term high temperature environments, slight deformation may occur. We recommend aluminum alloy formwork or steel frame wood formwork for high temperature areas.

What are the defects of the plastic template system?

Limited load capacity for large-sized concrete structures and poor high temperature resistance with potential deformation in high-temperature areas.

What is the payment method you require?

Payments ≤1,000USD: 100% in advance. Payments ≥10,000USD: 30% T/T in advance, balance before shipment. L/C also accepted.
